Help on Jack Connections

INPUT IR INPUT JACK WINDOW For a direct connection from For local Vertex² system controller. Central control. A It does not use system controller will LED/Light. For local connect an IR TX LED ADD ON IN/OUT Vertex² Central on top here. control. Not yet used.

FRONT

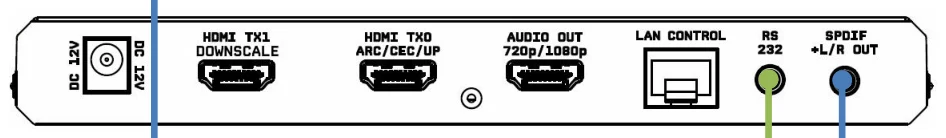

BACK

RS232 IN/OUT INPUT IR JACK Control Vertex² from For an IR RX cable with LED Mac/Win/Linux computer or receiver. In case, for example, command any RS232 capable if IR window is not in line of display or equipment based sight. For Vertex² Central on incoming signal types. control. SPDIF or L/R Analog OUT Extract HDMI sound coming from any source devices at Vertex² inputs. SPDIF can also output ARC from TX0
